在pcDuino上通过Cylon控制硬件

May 17th, 2016

准备工作:

我们用的板子型号是pcDuino3B(http://www.linksprite.com/linksprite-pcduino3/)。默认系统是ubuntu 12.04。推荐从官网下载固件(http://www.linksprite.com/linksprite-pcduino3/)把pcDuino刷到buntu 14.04,因为nodejs发展迭代比较快,低版本的gcc,g++无法编译某些nodejs。

安装具体的构建工具:

1. armhf的源非常少,所以例如sohu,163很多arm设备的源根本不支持,推荐原装的源,可能网速慢些,但起码比较齐全。
2. apt-get install build-essential
3. apt-get install git
4. ubuntu 12.04 的软件仓库中版本比较老,从仓库直接安装nodejs和npm后,安装grunt会存在问题,所以推荐源码安装,或者直接官网armv7二进制版本安装。
5. wget https://nodejs.org/dist/v6.1.0/node-v6.1.0-linux-armv7l.tar.xz
6. 解压缩node-v6.1.0-linux-armv7l.tar.xz
7. cd node-v5.10.1-linux-armv7l
8. 将其复制到/usr/local下即可使用
9. 查看node 版本 :node -v
10. 查看npm版本:npm -v
11. 安装好npm后,设置国内npm源:npm config set registry https://registry.npm.taobao.org

在安装过程中,我遇到很多坑,比如安装node-inspector,最后返回 ELIFECYCLE,通过查找资料,我们可以使用–unsafe-perm,对于一些在armv7上没有编译的二进制包,我们可以使用–build-from-source,直接本地编译(尽量使用g++ 4.8之后的版本)。

开始写代码:

比如我们在一个文件中写入:

'use strict';

    console.log("hello test");
    var Cylon = require("cylon");

    Cylon.robot({
      connections: {
        pcduino: { adaptor: 'pcduino' }
      },

      devices: {
        led: { driver: 'led', pin: 10 }
      },

      work: function(my) {
       every((1).second(), my.led.toggle);
      }
    }).start();

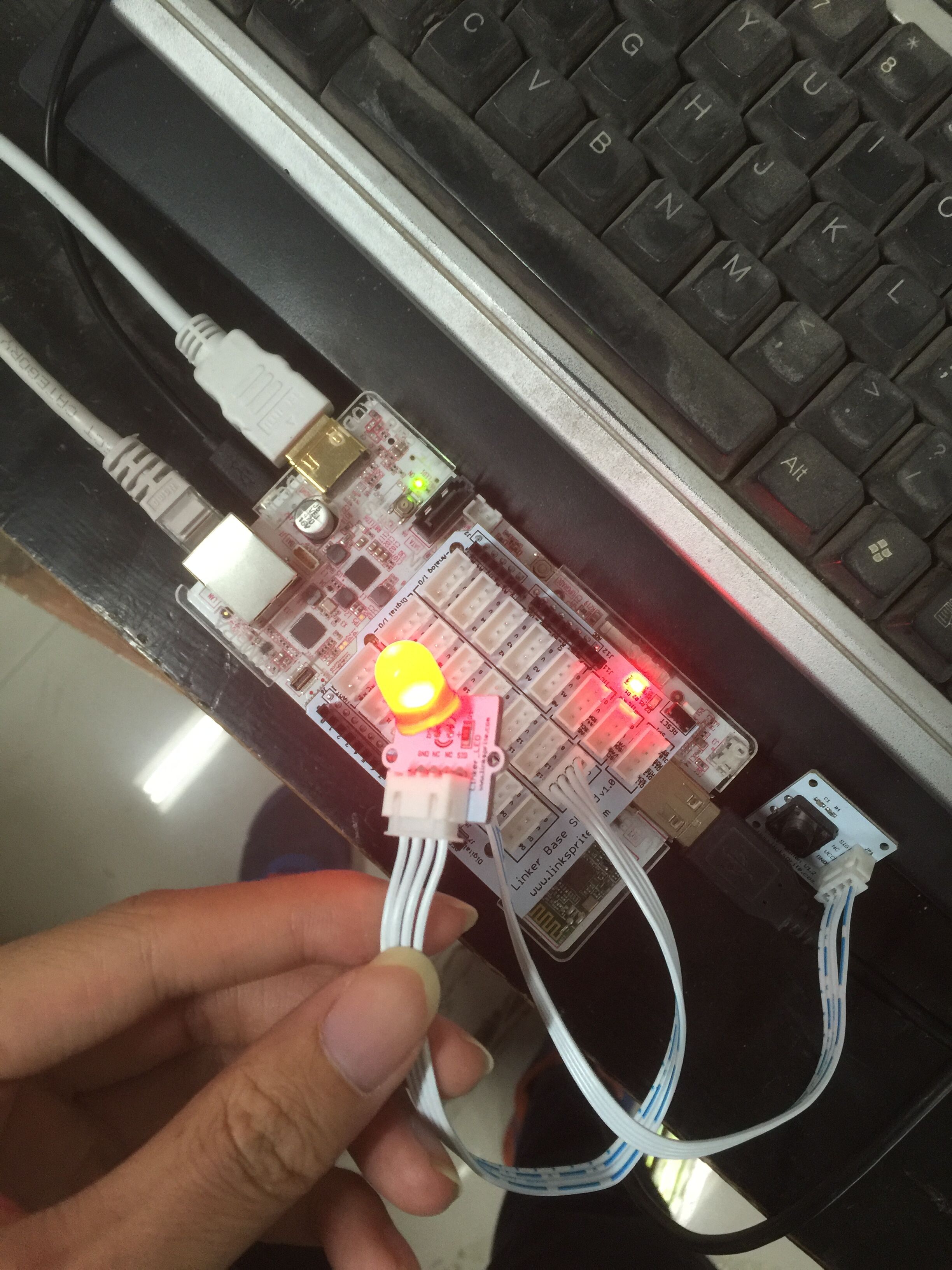

然后通过node运行,查看安装效果:

QQ图片20160517214206

目前已有很多项目在使用这个serialport包进行串口处理:

  • Johnny-Five – Firmata based Arduino Framework.
  • Cylon.js – JavaScript Robotics, By Your Command.
  • node-l8smartlight (source) A node library to control the L8 Smartlight via Bluetooth or USB port
  • firmata Talk natively to Arduino using the firmata protocol.
  • tmpad source – a DIY midi pad using infrared, arduino, and nodejs. Video
  • duino – A higher level framework for working with Arduinos in node.js.
  • Arduino Drinking Game Extravaganza – AKA “The Russian” a hexidecimal drinking game for geeks by Uxebu presented at JSConf EU 2011.
  • Arduino controlling popcorn.js – Controlling a popcorn.js video with an Arduino kit.
  • Robotic JavaScript – The first live presentation of the node-serialport code set as presented at JSConf EU 2010.
  • devicestack – This module helps you to represent a device and its protocol.
  • reflecta A communication protocol that combines Arduino Libraries and NodeJS into an integrated system.
  • rc4pt-node – Control Popcorntime with an Infrared receiver and Arduino.

参考

http://www.linuxidc.com/Linux/2016-04/130093.htmnodejs

官方代码仓库:https://nodejs.org/download/release/latest/

配置淘宝npm源:http://www.cnblogs.com/trying/p/4064518.html

http://cnodejs.org/topic/4f9904f9407edba21468f31e
