手动创建类docker环境

March 10th, 2016

最近docker特别的火,但是细究docker的原理机制。其实就是使用了cgroups+namespace完成资源的限制与隔离。现在我们手动创建一个namespace的容器,做到资源的隔离。

之前我们已经讨论了namespace的组成现在我们通过手动的方式创建每种不同namespace的环境。创建不同的namespace主要使用clone()+特定关键字的方式进行。我们可以把clone返回的pid,所以container也是一种特殊的进程!

Mount namespaces CLONE_NEWNS Linux 2.4.19
UTS namespaces CLONE_NEWUTS Linux 2.6.19
IPC namespaces CLONE_NEWIPC Linux 2.6.19
PID namespaces CLONE_NEWPID Linux 2.6.24
Network namespaces CLONE_NEWNET 始于Linux 2.6.24 完成于 Linux 2.6.29
User namespaces CLONE_NEWUSER 始于 Linux 2.6.23 完成于 Linux 3.8)



š 通过这个表格我们看到每个namespace完成时间不同,但是基于目前kernel版本已经为4.0.我们可以理解namespace部分基本完成。首先我们先定义一个模板:

#define _GNU_SOURCE
#include <sys/types.h>
#include <sys/wait.h>
#include <stdio.h>
#include <sched.h>
#include <signal.h>
#include <unistd.h>

#define STACK_SIZE (1024 * 1024)

static char child_stack[STACK_SIZE];
char* const child_args[] = {
  "/bin/bash",
  NULL
};

int child_main(void* arg)
{
  printf(" - World !\n");
  execv(child_args[0], child_args);
  printf("Ooops\n");
  return 1;
}

int main()
{
  printf(" - Hello ?\n");
  int child_pid = clone(child_main, child_stack+STACK_SIZE, SIGCHLD, NULL);
  waitpid(child_pid, NULL, 0);
  return 0;
}

这里我们发现clone()的第二个参数是child_stack+STACK_SIZE,这里要说明下栈是从高地址往低地址走的,所以给出最后一个地址,也就是给出了栈的首地址。

1.UTS namespace[1]

使用这个UTS namespace可以使得容器拥有自己的主机名,程序是要是使用clone+sethostname()配合,这个与fork一个进程特别相似。

// (needs root privileges (or appropriate capabilities))
//[...]
int child_main(void* arg)
{
  printf(" - World !\n");
  sethostname("In Namespace", 12);
  execv(child_args[0], child_args);
  printf("Ooops\n");
  return 1;
}

int main()
{
  printf(" - Hello ?\n");
  int child_pid = clone(child_main, child_stack+STACK_SIZE,
      CLONE_NEWUTS | SIGCHLD, NULL);
  waitpid(child_pid, NULL, 0);
  return 0;
}

与fork()函数类似,fork()函数创建一个新的child_pid时,进程中的内容与父进程完全相同,当后续执行子进程功能时,使用execv()族函数覆盖子进程各个程序段,包括代码段数据段等。这里我们注意到clone()函数中的CLONE_NEWUTS关键字,然后在子函数中调用execv(child_args[0], child_args);

注:child_args省略在运行程序添加参数

运行结果:

lzz@localhost:~/container$ gcc -Wall main.c -o ns && sudo ./ns
 - Hello ?
 - World !
root@In Namespace:~/container$ # inside the container
root@In Namespace:~/container$ exit
lzz@localhost:~/container$ # outside the container

上面的这个namespace只做到主机名的隔离,其他子系统都没有还没有隔离,我们在proc下还是可以看到全局的信息。

2.IPC namespace[2]

这里我们使用pipe进行同步,当创建child_pid时, checkpoint[0]为管道里的读取端,checkpoint[1]则为管道的写入端。当管道没有数据时,read()调用将默认的被阻塞,等待某些数据写入,从而达到同步的目的。

...
int child_main(void* arg)
{
  char c;

  // init sync primitive
  close(checkpoint[1]);
  // wait...
  read(checkpoint[0], &c, 1);

  printf(" - World !\n");
  sethostname("In Namespace", 12);
  execv(child_args[0], child_args);
  printf("Ooops\n");
  return 1;
}

int main()
{
  // init sync primitive
  pipe(checkpoint);

  printf(" - Hello ?\n");

  int child_pid = clone(child_main, child_stack+STACK_SIZE,
      CLONE_NEWUTS | CLONE_NEWIPC | SIGCHLD, NULL);

  // some damn long init job
  sleep(4);
  // signal "done"
  close(checkpoint[1]);

  waitpid(child_pid, NULL, 0);
  return 0;
}

这里在父进程下关闭close(checkpoint[1]);意味着父进程结束,子进程才能继续。

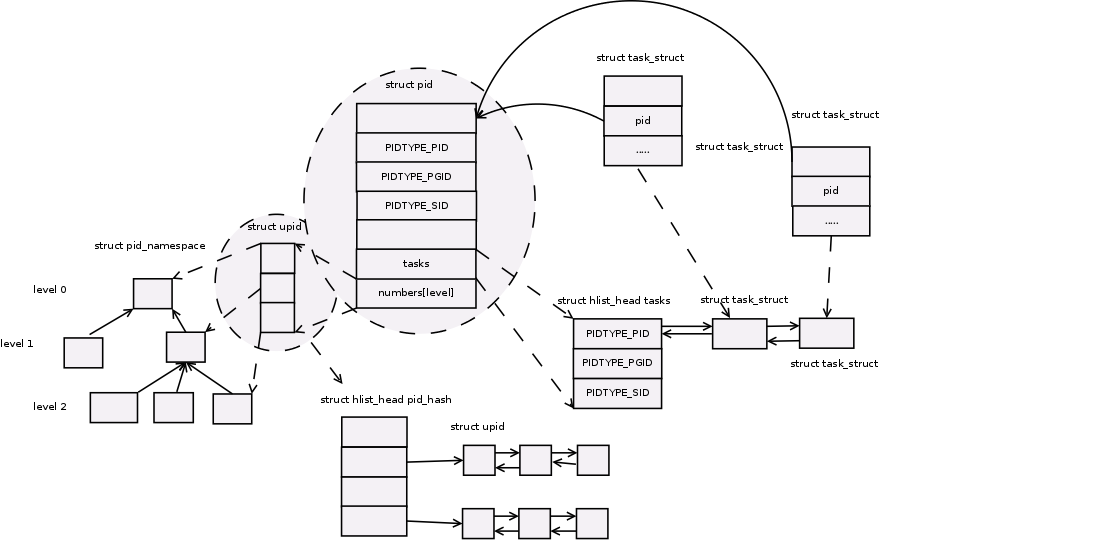

3. PID namespace[3]

PID namespace可以做到容器内部的pid与容器外的隔离,也就是说都可以有pid 1的进程,当然容器内pid 1 的进程映射到容器外,拥有其他的pid 号。

...
int child_main(void* arg)
{
  char c;

  // init sync primitive
  close(checkpoint[1]);
  // wait...
  read(checkpoint[0], &c, 1);

  printf(" - [%5d] World !\n", getpid());
  sethostname("In Namespace", 12);
  execv(child_args[0], child_args);
  printf("Ooops\n");
  return 1;
}

int main()
{
  // init sync primitive
  pipe(checkpoint);

  printf(" - [%5d] Hello ?\n", getpid());

  int child_pid = clone(child_main, child_stack+STACK_SIZE,
      CLONE_NEWUTS | CLONE_NEWIPC | CLONE_NEWPID | SIGCHLD, NULL);

  // further init here (nothing yet)

  // signal "done"
  close(checkpoint[1]);

  waitpid(child_pid, NULL, 0);
  return 0;
}

这里我们看到在clone的标志里又加入了CLONE_NEWPID,然后在child_main中加入getpid(),我们可以发现容器的pid号。运行结果:

lzz@localhost:~/container$ gcc -Wall main-3-pid.c -o ns && sudo ./ns
 - [ 7823] Hello ?
 - [    1] World !
root@In Namespace:~/blog# echo "=> My PID: $$"
=> My PID: 1
root@In Namespace:~/blog# exit

这里我们发现在容器中,我们没有挂载proc文件系统,这里有一个问题,如果我们在容器里面挂载一个proc,在容器外使用top、ps -aux会提示出错。需要重新挂载proc在根目录下,因为这里我们并没有隔离文件系统。

4.CLONE_NEWNS[4]

这个clone选项,可以保证在容器内的文件挂载操作,不影响父容器的使用,也就解决了上面proc挂载损坏父容器空间的问题。

...
// sync primitive
int checkpoint[2];
....
int child_main(void* arg)
{
  char c;

  // init sync primitive
  close(checkpoint[1]);

  // setup hostname
  printf(" - [%5d] World !\n", getpid());
  sethostname("In Namespace", 12);

  // remount "/proc" to get accurate "top" && "ps" output
  mount("proc", "/proc", "proc", 0, NULL);

  // wait...
  read(checkpoint[0], &c, 1);

  execv(child_args[0], child_args);
  printf("Ooops\n");
  return 1;
}

int main()
{
  // init sync primitive
  pipe(checkpoint);

  printf(" - [%5d] Hello ?\n", getpid());

  int child_pid = clone(child_main, child_stack+STACK_SIZE,
      CLONE_NEWUTS | CLONE_NEWIPC | CLONE_NEWPID | CLONE_NEWNS | SIGCHLD, NULL);

  // further init here (nothing yet)

  // signal "done"
  close(checkpoint[1]);

  waitpid(child_pid, NULL, 0);
  return 0;
}

这个时候我们运行这个程序:

lzz@localhost:~/container$ gcc -Wall ns.c -o ns && sudo ./ns
 - [14472] Hello ?
 - [    1] World !
root@In Namespace:~/blog# mount -t proc proc /proc
root@In Namespace:~/blog# ps aux
USER       PID %CPU %MEM    VSZ   RSS TTY      STAT START   TIME COMMAND
root         1  1.0  0.0  23620  4680 pts/4    S    00:07   0:00 /bin/bash
root        79  0.0  0.0  18492  1328 pts/4    R+   00:07   0:00 ps aux
root@In Namespace:~/blog# exit

可以发现容器内的ps读取的是容器内部的proc文件系统!

这里我们就要考虑docker中,比如我们从docker hub下pull下一个镜像,在这个镜像中必然存在一个文件系统rootfs,包括各种配置信息,基本的链接库。各种特殊的文件系统:/dev,/sysfs等。这个就需要我们进行裁剪!
这里主要存在的目录有:

bin etc lib lib64 mnt proc run sbin sys tmp usr/bin

我们需要根据自己的architecture配置这些目录。最后使用mount,将容器中的文件系统,都挂载到这些目录下。挂载完毕后使用chroot与chdir隔离目录:

    if ( chdir("./rootfs") != 0 || chroot("./") != 0 ){
        perror("chdir/chroot");
    }

5.User namespace[5]

这个namespace主要是管理用户的UID,GID,主要原理通过读写/proc//uid_map 和 /proc//gid_map 这两个文件。这两个文件的格式为:ID-inside-ns ID-outside-ns length 。
核心函数:

void set_map(char* file, int inside_id, int outside_id, int len) {
    FILE* mapfd = fopen(file, "w");
    if (NULL == mapfd) {
        perror("open file error");
        return;
    }
    fprintf(mapfd, "%d %d %d", inside_id, outside_id, len);
    fclose(mapfd);
}

void set_uid_map(pid_t pid, int inside_id, int outside_id, int len) {
    char file[256];
    sprintf(file, "/proc/%d/uid_map", pid);
    set_map(file, inside_id, outside_id, len);
}

void set_gid_map(pid_t pid, int inside_id, int outside_id, int len) {
    char file[256];
    sprintf(file, "/proc/%d/gid_map", pid);
    set_map(file, inside_id, outside_id, len);
}

6.Network namespace[6]

这个namespace主要完成的是将一块物理网卡虚拟出多快虚拟网卡,主要命令:

# Create a "demo" namespace
ip netns add demo

# create a "veth" pair
ip link add veth0 type veth peer name veth1

# and move one to the namespace
ip link set veth1 netns demo

# configure the interfaces (up + IP)
ip netns exec demo ip link set lo up
ip netns exec demo ip link set veth1 up
ip netns exec demo ip addr add xxx.xxx.xxx.xxx/30 dev veth1
ip link set veth0 up
ip addr add xxx.xxx.xxx.xxx/30 dev veth0

运用在代码中就是:

...
int child_main(void* arg)
{
  char c;

  // init sync primitive
  close(checkpoint[1]);

  // setup hostname
  printf(" - [%5d] World !\n", getpid());
  sethostname("In Namespace", 12);

  // remount "/proc" to get accurate "top" && "ps" output
  mount("proc", "/proc", "proc", 0, NULL);

  // wait for network setup in parent
  read(checkpoint[0], &c, 1);

  // setup network
  system("ip link set lo up");
  system("ip link set veth1 up");
  system("ip addr add 169.254.1.2/30 dev veth1");

  execv(child_args[0], child_args);
  printf("Ooops\n");
  return 1;
}

int main()
{
  // init sync primitive
  pipe(checkpoint);

  printf(" - [%5d] Hello ?\n", getpid());

  int child_pid = clone(child_main, child_stack+STACK_SIZE,
      CLONE_NEWUTS | CLONE_NEWIPC | CLONE_NEWPID | CLONE_NEWNS | CLONE_NEWNET | SIGCHLD, NULL);

  // further init: create a veth pair
  char* cmd;
  asprintf(&cmd, "ip link set veth1 netns %d", child_pid);
  system("ip link add veth0 type veth peer name veth1");
  system(cmd);
  system("ip link set veth0 up");
  system("ip addr add 169.254.1.1/30 dev veth0");
  free(cmd);

  // signal "done"
  close(checkpoint[1]);

  waitpid(child_pid, NULL, 0);
  return 0;
}

对于网络这一块,要想使得容器内的进程与容器外的进程通信,需要架设网桥,具体可以查看相关文档。

Final

我们这里看一下父子容器的namespace:
父:

lzz@localhost:~$ sudo ls -l /proc/4599/ns
total 0
lrwxrwxrwx 1 root root 0  4月  7 22:01 ipc -> ipc:[4026531839]
lrwxrwxrwx 1 root root 0  4月  7 22:01 mnt -> mnt:[4026531840]
lrwxrwxrwx 1 root root 0  4月  7 22:01 net -> net:[4026531956]
lrwxrwxrwx 1 root root 0  4月  7 22:01 pid -> pid:[4026531836]
lrwxrwxrwx 1 root root 0  4月  7 22:01 user -> user:[4026531837]
lrwxrwxrwx 1 root root 0  4月  7 22:01 uts -> uts:[4026531838]

子:

lzz@localhost:~$ sudo ls -l /proc/4600/ns
total 0
lrwxrwxrwx 1 root root 0  4月  7 22:01 ipc -> ipc:[4026531839]
lrwxrwxrwx 1 root root 0  4月  7 22:01 mnt -> mnt:[4026532520]
lrwxrwxrwx 1 root root 0  4月  7 22:01 net -> net:[4026531956]
lrwxrwxrwx 1 root root 0  4月  7 22:01 pid -> pid:[4026532522]
lrwxrwxrwx 1 root root 0  4月  7 22:01 user -> user:[4026531837]
lrwxrwxrwx 1 root root 0  4月  7 22:01 uts -> uts:[4026532521]

我们可以发现,其中的ipc,net,user是相同的ID,而mnt,pid,uts都是不同的。如果两个进程指向的namespace编号相同,就说明他们在同一个namespace下,否则则在不同namespace里面。



参考:

[1] http://lwn.net/Articles/531245/

[2] http://coolshell.cn/articles/17010.html

[3] http://lwn.net/Articles/532741/

[4] http://coolshell.cn/articles/17029.html

[5] http://lwn.net/Articles/539941/

[6] http://lwn.net/Articles/580893/

[7]

https://blog.jtlebi.fr/2014/01/12/introduction-to-linux-namespaces-part-4-ns-fs/
http://www.cnblogs.com/nufangrensheng/p/3579378.html

Docker 使用

May 19th, 2015

Update 2015-6-3

最近项目需要使用到docker进行live migration。之前接触过lxc,所以这时两款原理上相同的容器虚拟化产品。我是在fedora 20下使用这个产品,在fedora20的官方仓库中有一个重名的软件包docker,我们需要使用docker-io安装。

安装完成以后就可以通过systemctl 启动docker daemon

$ sudo systemctl start docker

如果想开机启动那么使用enable命令,当我们安装好docker以后,可以使用docker ps查看,在目前我使用的1.5版本docker。首先我先pull一个镜像:

[root@localhost contrib]# docker pull ubuntu:latest
[root@localhost contrib]# docker images
REPOSITORY          TAG                 IMAGE ID            CREATED             VIRTUAL SIZE
ubuntu              14.04.2             07f8e8c5e660        2 weeks ago         188.3 MB
ubuntu              latest              07f8e8c5e660        2 weeks ago         188.3 MB
ubuntu              trusty              07f8e8c5e660        2 weeks ago         188.3 MB
ubuntu              trusty-20150427     07f8e8c5e660        2 weeks ago         188.3 MB
ubuntu              14.04               07f8e8c5e660        2 weeks ago         188.3 MB
busybox             buildroot-2014.02   8c2e06607696        4 weeks ago         2.43 MB
busybox             latest              8c2e06607696        4 weeks ago         2.43 MB

pull完成以后,就可以通过docker images查看本机拥有的镜像,这时候我们使用docker run -d -t -i ubuntu /bin/sh可以启动镜像。

we’ve also passed in two flags: -t and -i. The -t flag assigns a pseudo-tty or terminal inside our new container and the -i flag allows us to make an interactive connection by grabbing the standard in (STDIN) of the container.

这时我们可以使用docker ps来查看本机启动的容器。

[root@localhost contrib]# docker ps
CONTAINER ID        IMAGE               COMMAND             CREATED             STATUS              PORTS               NAMES
f05df7249fea        ubuntu:14.04        "/bin/bash"         9 seconds ago       Up 6 seconds                            silly_hypatia



docker不同于lxc,主要使用一个64bit的id唯一标示一个容器,也是通过这个CONTAINER ID来标示,至于容器的停止,使用docker stop [CONTAINER ID] 或者是docker stop [NAMES]。删除一个镜像是docker rmi REPOSITORY:TAG即可,我们也可以使用别名机制来代替具体的CONTAINER ID。

[root@localhost contrib]# docker run -d -i -t --name busybox busybox:latest
3772693b1a82f996b296addf2f2ec00636535c81aa61730f66717d1311ae1b20
[root@localhost contrib]# docker stop busybox
busybox
[root@localhost contrib]# docker run -d -i -t --name busybox busybox:latest
FATA[0000] Error response from daemon: Conflict. The name "busybox" is already in use by container 3772693b1a82. You have to delete (or rename) that container to be able to reuse that name.
[root@localhost contrib]# docker run -d -i -t busybox:latest
5c331e6cddb00e134f39831ce1a6c5a9763c5ba60e1a41232503fce49fa17b09
[root@localhost contrib]# docker ps
CONTAINER ID        IMAGE                       COMMAND             CREATED             STATUS              PORTS               NAMES
5c331e6cddb0        busybox:buildroot-2014.02   "/bin/sh"           8 seconds ago       Up 6 seconds                            elated_meitner
f05df7249fea        ubuntu:14.04                "/bin/bash"         3 hours ago         Up 3 hours                              silly_hypatia

我们知道对于容器的动态迁移,利用pid进行C/R操作是十分有必要的,要想知道容器的pid,那么我们使用docker inspect busybox 查询当前容器的信息。我们看到这个容器的pid是768。

# docker inspect busybox
.....
"Path": "/bin/sh",
    "ProcessLabel": "",
    "ResolvConfPath": "/var/lib/docker/containers/f89a11d1cfe0037993dc4862ee218d59ccdcc4c7377fa4ed8946ed744226d8f6/resolv.conf",
    "RestartCount": 0,
    "State": {
        "Error": "",
        "ExitCode": 0,
        "FinishedAt": "0001-01-01T00:00:00Z",
        "OOMKilled": false,
        "Paused": false,
        "Pid": 768,
        "Restarting": false,
        "Running": true,
        "StartedAt": "2015-06-02T22:48:09.975364683Z"
    },
    "Volumes": {},
    "VolumesRW": {}
....





参考:

http://criu.org/Docker

http://docs.docker.com/userguide/dockerizing/

Linux PID namespace分析(2)

March 11th, 2015

PID namespace 主要完成的功能是让不同的namespace中可以有相同的PID,子namespace与root namespace之前存在映射关系。

完成这个PID功能的主要由两个结构:

struct upid,主要表示某个特定namespace中的pid实例,而struct pid可以理解为在根root namespace中存在的pid实例,而这个实例在每个子namespace中可以有不同的upid,这个时候struct pid 下的numbers成员可以表示,在声明中我们看到numbers的大小只有1,我们可以理解为一个系统只有一个全局namespace。

如果我们创建一个子namespace,numbers的大小会动态分配,然后向namespace中添加更多的upid。
默认我们可以理解为全局namespace只有一层也就是level=0 numbers也只有1个实例。

 50 struct upid {
 51         /* Try to keep pid_chain in the same cacheline as nr for find_vpid */
 52         int nr;
 53         struct pid_namespace *ns;
 54         struct hlist_node pid_chain;
 55 };
 56
 57 struct pid
 58 {
 59         atomic_t count;
 60         unsigned int level;
 61         /* lists of tasks that use this pid */
 62         struct hlist_head tasks[PIDTYPE_MAX];
 63         struct rcu_head rcu;
 64         struct upid numbers[1];
 65 };

举例,比如我们在进行kill操作时,就会首先给进程发送一个signal,然后系统调用解析signal,最后调用到kill_something_info()的函数。http://lxr.free-electrons.com/source/kernel/signal.c#L1425

这个函数中有一个子函数kill_pid_info(),里面的pid_task()函数就可以看到可以通过pid与pid_type查找某个特定的task_struct。从而通过控制PCB块达到控制该进程的目的。

上面我们看到系统存在以下几种类型的PID,而这个在struct pid中声明了几个散列表头的节点,用来链接每个namespace中的upid。
我们可以看到PIDTYPE_MAX为3,通过这种方式我们可以动态添加pid_type,非常方便。这里的pid_type中没有线程组TGID,但是在struct task_struct 中存在groups_leader的成员,可以利用这个成员访问pid。

enum pid_type
{
         PIDTYPE_PID,
         PIDTYPE_PGID,
         PIDTYPE_SID,
         PIDTYPE_MAX
};



PID

通过看这个图,我们基本可以大致的弄清楚PID namespace的结构。

系统中可以有多个struct task_struct 结构,并且他们的pid相同,指向同一个pid实例,这就表明系统中不只存在一个全局命名空间,多个struct task_struct中的pid(我们需要注意一点是在struct task_struct中pid是存在于struct pid_link pids[PDTYPE_MAX]中,还有一个pid_t pid仅仅是数值而已。通过这种方式每个struct task_struct被组织到struct hlist_head tasks的散列表数组上。)指向同一个struct pid实例,这个就要分类来看到底是何种类型的pid,通过上面的枚举,可以看到可以存在PID、PGID、SID。

内核只关心全局的pid,因为该pid肯定是唯一的,子namespace的pid查看,只需查找相关映射即可。

上面说到的通过pid可以查找task_struct,原理就是查找查找struct pid中task散列表数组,然后通过对应特定类型的type,查找该散列表上面的特定元素。具体查看http://lxr.free-electrons.com/source/kernel/pid.c#L434

至于那个numbers的数据,存放的就是每个命名空间的实例,虽然这个数据类型是upid,但是upid内部有成员函数pid_namespace 。

pid_namespace 包括指向直接的父namespace成员。

 24 struct pid_namespace {
...
 30         struct task_struct *child_reaper;
 31         struct kmem_cache *pid_cachep;
 32         unsigned int level;
 33         struct pid_namespace *parent;
...
 48 };

通过这个upid,我们可以找到特定pid_namespace 。依照上图,level 0的命名空间就是全局命名空间,下面的level 1 2 都是子命名空间。这种层级的组织使得父namespace可以看到子namespace的PID,反之则不行。

具体实现:http://lxr.free-electrons.com/source/kernel/pid.c#L500

除了这种树形组织结构,这些upid实例还被组织到一个pid_hash的散列表数组中。这个变量是全局的。

static struct hlist_head *pid_hash;
575 void __init pidhash_init(void)
576 {
577         unsigned int i, pidhash_size;
578
579         pid_hash = alloc_large_system_hash("PID", sizeof(*pid_hash), 0, 18,
580                                            HASH_EARLY | HASH_SMALL,
581                                            &pidhash_shift, NULL,
582                                            0, 4096);
583         pidhash_size = 1U << pidhash_shift;
584
585         for (i = 0; i < pidhash_size; i++)
586                 INIT_HLIST_HEAD(&pid_hash[i]);
587 }

每个upid又会被组织到这个pid_hash,这样可以加快搜索。

最后就是通过各种参数查找pid、task_struct、namespace的实例,理解了数据结构,使用系统提供的内核API则不难。





参考:
http://blog.chinaunix.net/uid-20687780-id-1587537.html
http://blog.chinaunix.net/uid-20687780-id-1587608.html
http://blog.chinaunix.net/uid-20687780-id-1587702.html

Linux namespace分析(1)

March 9th, 2015

在linux中实现kernel virtualization 的条件就是资源的限制与隔离,而namespace完成的系统资源的隔离。

从Linux 2.6.23开始 对于namespace的框架实现基本完成,之后的patch大多是修修补补,比较重要的一个patch是linux 3.8中一个非root用户可以创建user namespace,在这个user namespace中,该用户拥有所有的权限,包括在这个namespace中创建其他类型的namespace。

Linux namespace主要包含:

  • UTS namespace
  • Mount namespace
  • IPC namespace
  • PID namespace
  • Network namespace
  • User namespace

UTS namespace主要可以使得host拥有两套nodename与domainname:最大的区别就是如果使用lxc或者docker启动一个镜像,使用uname可以获得不同的主机名。

Mount namespace使得不同namespace中的相同进程都对文件结构有不同的视角,比起chroot有更好的安全性,使用namespace特性,可以使得系统的mount namespace产生主从的结构。

IPC namespace 使得每个IPC内的进程相互通信。

PID namespace最为神奇,他使得进程在不同的PID namespace中可以拥有相同的PID,也就是说如果系统拥有root namespace、namespace A、namespace B 。其中A、B是root的子命名空间,也就是说在A、B命名空间内部可以存在两个相同的PID,比如init 。当然这两个init的PID号从root命名空间来看是不同的,这里就有了映射的概念。

Network namespace 可以使得一个物理主机的网卡,模拟出两个虚拟网卡,每个虚拟网卡都可以绑定相同的端口,访问却不受影响。

User namespace 是在linux 3.8 才完成的部分,他可以使得一个进程的User ID和group ID相比于命名空间内外不同。举例:在root namespace中的一个非特权进程在namespace A中可以是init 0 ,可以是一个特权进程!

以上这些空间可以使得linux建立起一个轻量级的虚拟机系统。比如lxc、docker。



参考:

http://lwn.net/Articles/531114/
