今天我继续来填坑，模板方法模式就是在模板方法中按照一定的规则顺序调用基本方法。这个比较简单。
比如我在父类run（）中调用类中一系列的方法。钩子是一种方法，它在抽象类中不做事，或者只做默认的事情，子类可以选择要不要去覆盖它。
Java中，如果父类里面有些方法不允许覆写，那么为了防止子类改变模板方法中的算法，可以将模板方法声明为final。

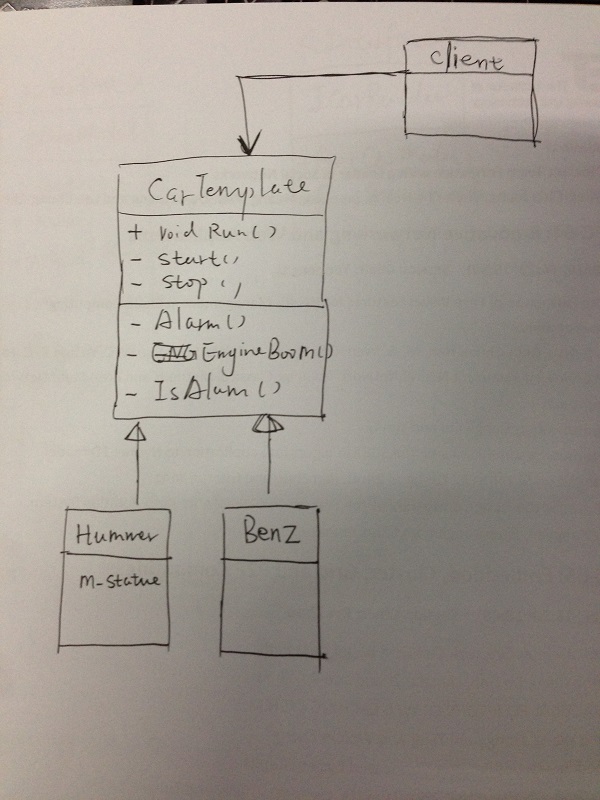

比如下面函数中bool IsAlarm() 就是一个hook
#include <iostream>
using namespace std;
class CarTemplate
{
public:
CarTemplate(void){};
virtual ~CarTemplate(void){};
protected:
virtual void Start() = 0;
virtual void Stop() = 0;
virtual void Alarm() = 0;
virtual void EngineBoom() = 0;
virtual bool IsAlarm() =0;
public:
void Run()
{
Start();
EngineBoom();
if(IsAlarm())
Alarm();
Stop();
};
};
class Hummer: public CarTemplate
{
public:
Hummer(){m_isAlarm = true;}
virtual ~Hummer(){};
protected:
void Start(){ cout<< "Hummer Start" <<endl; }
void Stop(){ cout<< "Hummer Stop" <<endl; }
void Alarm(){ cout<< "Hummer Alarm" <<endl;}
bool IsAlarm(){ return m_isAlarm; }
void EngineBoom(){ cout<< "Hummer EngineBoom" <<endl; }
private:
bool m_isAlarm;
};
class Benz: public CarTemplate
{
public:
Benz(){m_isAlarm = false;}
virtual ~Benz(){};
protected:
void Start(){ cout<< "Benz Start" <<endl; }
void Stop(){ cout<< "Benz Stop" <<endl; }
void Alarm(){ cout<< "Benz Alarm" <<endl;}
bool IsAlarm(){ return m_isAlarm; }
void EngineBoom(){ cout<< "Benz EngineBoom" <<endl; }
private:
bool m_isAlarm;
};
int main()
{
CarTemplate *hummer = new Hummer();
hummer->Run();
delete hummer;
CarTemplate *benz = new Benz();
benz->Run();
delete benz;
}
优点就在于可以封装不变的部分，拓展可变的部分，也就是把共性的东西抽取出来，这样可以便于维护。
但是缺点在于子类的执行，影响到父类的结果。有时候会有一些晦涩难懂。
———————————————————————————————-
在模板方法中，我们把相同的都封装在父类中，不同都定义在子类中。但是需求的变化是无穷无尽的。

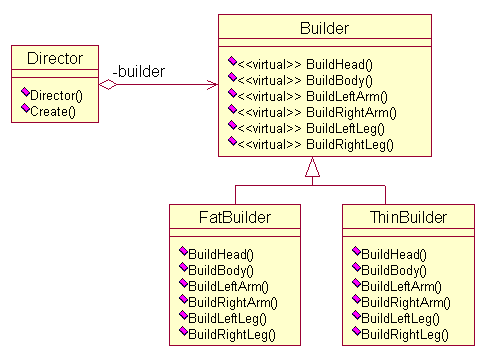

比如建造的顺序可能是变化的，所以将他放到builder类中，通过builder类获取真正的product！
class Builder
{
public:
virtual void BuildHead() {}
virtual void BuildBody() {}
virtual void BuildLeftArm(){}
virtual void BuildRightArm() {}
virtual void BuildLeftLeg() {}
virtual void BuildRightLeg() {}
};
//构造瘦人
class ThinBuilder : public Builder
{
public:
void BuildHead() { cout<<"build thin body"<<endl; }
void BuildBody() { cout<<"build thin head"<<endl; }
void BuildLeftArm() { cout<<"build thin leftarm"<<endl; }
void BuildRightArm() { cout<<"build thin rightarm"<<endl; }
void BuildLeftLeg() { cout<<"build thin leftleg"<<endl; }
void BuildRightLeg() { cout<<"build thin rightleg"<<endl; }
};
//构造胖人
class FatBuilder : public Builder
{
public:
void BuildHead() { cout<<"build fat body"<<endl; }
void BuildBody() { cout<<"build fat head"<<endl; }
void BuildLeftArm() { cout<<"build fat leftarm"<<endl; }
void BuildRightArm() { cout<<"build fat rightarm"<<endl; }
void BuildLeftLeg() { cout<<"build fat leftleg"<<endl; }
void BuildRightLeg() { cout<<"build fat rightleg"<<endl; }
}; //构造的指挥官
class Director{
private:
Builder *m_pBuilder;
public:
Director(Builder *builder) { m_pBuilder = builder; }
void Create(){
m_pBuilder->BuildHead();
m_pBuilder->BuildBody();
m_pBuilder->BuildLeftArm();
m_pBuilder->BuildRightArm();
m_pBuilder->BuildLeftLeg();
m_pBuilder->BuildRightLeg();
}
};
int main()
{
FatBuilder fat;
Director director(&fat);
director.Create();
---------------------------------------------------------------------------
Builder *thin = new ThinBuilder();
Director *dir = new Director(thin);
dir->Create();
return 0;
}
建造者模式的优点：在于我们不用关心每个产品内部的组成细节，比如FatBuildier ThinBuilider，然后我们交给Director来构造就好了。
建造者是独立的，我们可以拓展更多的builder完成不同的功能。并不对系统有任何影响。
特别适合产品类特别复杂，顺序不同，效能不同。顺序是区别模板模式与建造者模式最大的不同点！
另外同工厂模式进行比较，工厂模式适合生产零件。不能再细分了。否则就不适合工厂模式。
把模板方式和建造者模式组合起来可以产生很好的效果，可以按照model通过builder批量生产某种特定型号的产品。
#include<iostream>
#include<vector>
#include<string>
using namespace std;
class CCarModel
{
public:
CCarModel(void) {}
virtual ~CCarModel(void){}
void Run()
{
vector::const_iterator it = m_pSequence->begin();
for (; it < m_pSequence->end(); ++it)
{
string actionName = *it;
if(actionName.compare("start") == 0)
{
Start();
}
else if(actionName.compare("stop") == 0)
{
Stop();
}
else if(actionName.compare("alarm") == 0)
{
Alarm();
}
else if(actionName.compare("engine boom") == 0)
{
EngineBoom();
}
}
}
void SetSequence(vector *pSeq)
{
m_pSequence = pSeq;
}
protected:
virtual void Start() = 0;
virtual void Stop() = 0;
virtual void Alarm() = 0;
virtual void EngineBoom() = 0;
private:
vector * m_pSequence;
};
class CBenzModel : public CCarModel
{
public:
CBenzModel(void){}
~CBenzModel(void){}
protected:
void Start(){cout << "Benz Start..." << endl;}
void Stop(){cout << "Benz Stop..." << endl;}
void Alarm(){cout << "Benz Alarm" << endl;}
void EngineBoom(){cout << "Benz EngineBoom...." << endl;}
};
class CBMWModel : public CCarModel
{
public:
CBMWModel(void){}
~CBMWModel(void){}
protected:
void Start(){cout << "BMW Start..." << endl;}
void Stop(){cout << "BMW Stop..." << endl;}
void Alarm(){cout << "BMW Alarm" << endl;}
void EngineBoom(){cout << "BMW EngineBoom...." << endl;}
};
class ICarBuilder
{
public:
ICarBuilder(void) { }
virtual ~ICarBuilder(void) { }
virtual void SetSequence(vector *pseq) = 0;
virtual CCarModel * GetCarModel() = 0;
};
class CBenzBuilder : public ICarBuilder
{
public:
CBenzBuilder(void);
~CBenzBuilder(void);
void SetSequence(vector *pSeq);
CCarModel * GetCarModel();
private:
CCarModel *m_pBenz;
};
CBenzBuilder::CBenzBuilder(void)
{
m_pBenz = new CBenzModel();
}
CBenzBuilder::~CBenzBuilder(void)
{
delete m_pBenz;
}
void CBenzBuilder::SetSequence(vector *pSeq)
{
m_pBenz->SetSequence(pSeq);
}
CCarModel * CBenzBuilder::GetCarModel()
{
return m_pBenz;
}
class CBMWBuilder :public ICarBuilder
{
public:
CBMWBuilder(void);
~CBMWBuilder(void);
void SetSequence(vector *pSeq);
CCarModel * GetCarModel();
private:
CCarModel *m_pBMW;
};
CBMWBuilder::CBMWBuilder(void)
{
m_pBMW = new CBMWModel();
}
CBMWBuilder::~CBMWBuilder(void)
{
delete m_pBMW;
}
void CBMWBuilder::SetSequence( vector *pSeq )
{
m_pBMW->SetSequence(pSeq);
}
CCarModel * CBMWBuilder::GetCarModel()
{
return m_pBMW;
}
class CDirector
{
public:
CDirector(void);
~CDirector(void);
CBenzModel * GetABenzModel();
CBenzModel * GetBBenzModel();
CBMWModel * GetCBMWModel();
CBMWModel * GetDBMWModel();
private:
vector * m_pSeqence;
CBenzBuilder * m_pBenzBuilder;
CBMWBuilder * m_pBMWBuilder;
};
CDirector::CDirector(void)
{
m_pBenzBuilder = new CBenzBuilder();
m_pBMWBuilder = new CBMWBuilder();
m_pSeqence = new vector();
}
CDirector::~CDirector(void)
{
delete m_pBenzBuilder;
delete m_pBMWBuilder;
delete m_pSeqence;
}
CBenzModel * CDirector::GetABenzModel()
{
m_pSeqence->clear();
m_pSeqence->push_back("start");
m_pSeqence->push_back("stop");
m_pBenzBuilder->SetSequence(m_pSeqence);
return dynamic_cast<CBenzModel*>(m_pBenzBuilder->GetCarModel());
}
CBenzModel * CDirector::GetBBenzModel()
{
m_pSeqence->clear();
m_pSeqence->push_back("engine boom");
m_pSeqence->push_back("start");
m_pSeqence->push_back("stop");
m_pBenzBuilder->SetSequence(m_pSeqence);
return dynamic_cast<CBenzModel*>(m_pBenzBuilder->GetCarModel());
}
CBMWModel * CDirector::GetCBMWModel()
{
m_pSeqence->clear();
m_pSeqence->push_back("alarm");
m_pSeqence->push_back("start");
m_pSeqence->push_back("stop");
m_pBMWBuilder->SetSequence(m_pSeqence);
return static_cast<CBMWModel*>(m_pBMWBuilder->GetCarModel());
}
CBMWModel * CDirector::GetDBMWModel()
{
m_pSeqence->clear();
m_pSeqence->push_back("start");
m_pBenzBuilder->SetSequence(m_pSeqence);
return dynamic_cast<CBMWModel*>(m_pBMWBuilder->GetCarModel());
}
int main(int argc, char const *argv[])
{
CDirector *dir = new CDirector();
dir->GetBBenzModel()->Run();
return 0;
}
通过上面可以看出两个模式的配合得到了很好的运用！
引用 http://blog.csdn.net/wuzhekai1985/article/details/6667467
