最近想换换口味，于是抱起久违的design pattern漫画书品读起来。
工厂模式属于创建型模式，大致可以分为三类，简单工厂模式、工厂方法模式、抽象工厂模式。

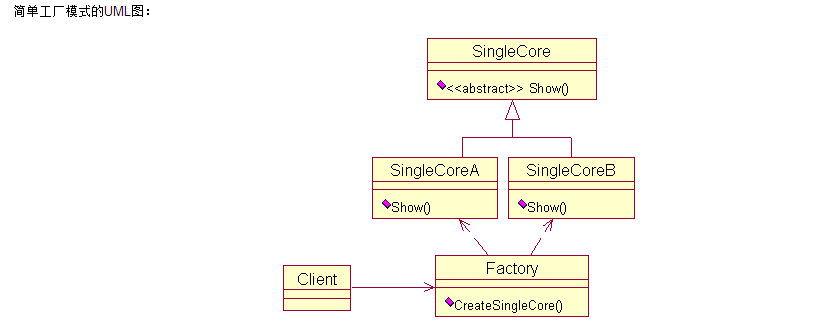

首先介绍简单工厂模式，它的主要特点是需要在工厂类中做判断，从而创造相应的产品。当增加新的产品时，就需要修改工厂类。
缺点：对修改不封闭，新增加产品您要修改工厂。违法了鼎鼎大名的开闭法则（OCP）。
#include <iostream>
using namespace std;
enum TYPE{COREA,COREB};
class SingleCore
{
public:
virtual ~SingleCore(){};
virtual void Show() = 0;
};
class CoreA:public SingleCore
{
public:
void Show()
{
cout<< "CoreA"<<endl;
}
};
class CoreB:public SingleCore
{
public:
void Show()
{
cout <<"CoreB"<<endl;
}
};
class SingleFactory
{
public:
SingleCore* CreateSingleCore(enum TYPE type)
{
if(type==COREA)
return new CoreA();
else if(type==COREB)
return new CoreB();
else
return NULL;
}
};
int main()
{
SingleFactory factory;
SingleCore *pcorea = factory.CreateSingleCore(COREA);
pcorea->Show();
SingleCore *pcoreb = factory.CreateSingleCore(COREB);
pcoreb->Show();
delete pcorea;
delete pcoreb;
}

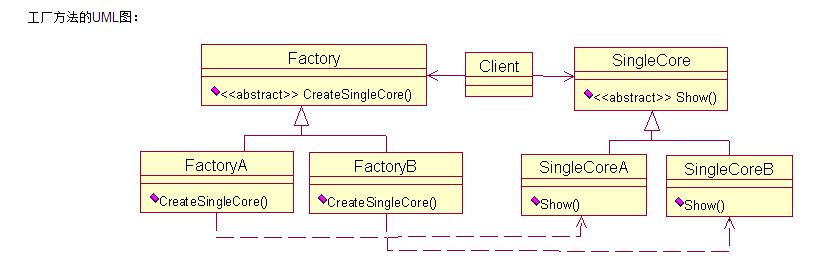

工厂方法模式的应用并不是只是为了封装对象的创建，而是要把对象的创建放到子类中实现：Factory中只是提供了对象创建的接口，其实现将放在Factory的子类Factory中进行。
工厂方法模式也有缺点，每增加一种产品，就需要增加一个对象的工厂。
#include <iostream>
using namespace std;
class SingleCore
{
public:
virtual ~SingleCore(){};
virtual void Show() = 0;
};
class CoreA:public SingleCore
{
public:
void Show()
{
cout<< "CoreA"<<endl;
}
};
class CoreB:public SingleCore
{
public:
void Show()
{
cout <<"CoreB"<<endl;
}
};
class SingleFactory
{
public:
virtual SingleCore* CreateSingleCore() = 0;
};
class FactoryA:public SingleFactory
{
public:
SingleCore* CreateSingleCore()
{
return new CoreA;
}
};
class FactoryB:public SingleFactory
{
public:
SingleCore* CreateSingleCore()
{
return new CoreB;
}
};
int main()
{
FactoryA factorya;
SingleCore *pcorea = factorya.CreateSingleCore();
pcorea->Show();
FactoryB factoryb;
SingleCore *pcoreb = factoryb.CreateSingleCore();
pcoreb->Show();
delete pcorea;
delete pcoreb;
}

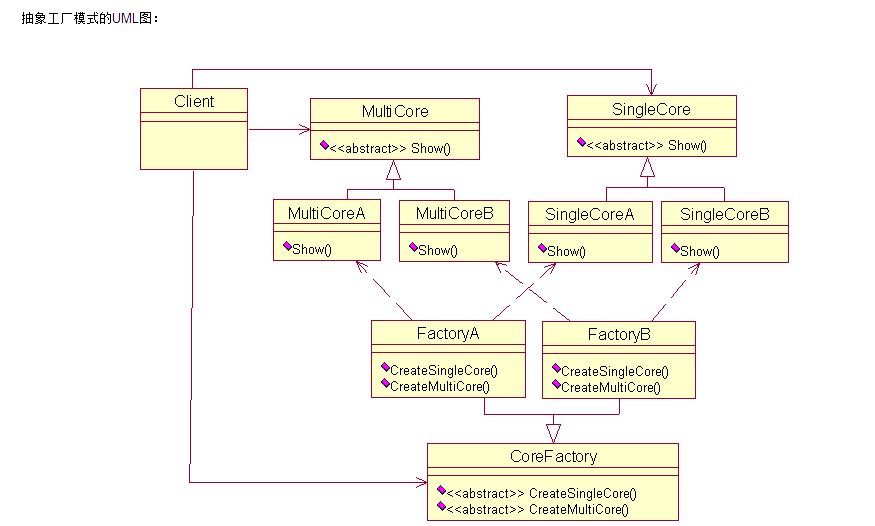

抽象工厂模式登场了。它的定义为提供一个创建一系列相关或相互依赖对象的接口，而无需指定它们具体的类。
抽象工厂模式的组成（和工厂方法模式一样）：
1)抽象工厂角色：这是工厂方法模式的核心，它与应用程序无关。是具体工厂角色必须实现的接口或者必须继承的父类。
2)具体工厂角色：它含有和具体业务逻辑有关的代码。由应用程序调用以创建对应的具体产品的对象。
3)抽象产品角色：它是具体产品继承的父类或者是实现的接口。
4)具体产品角色：具体工厂角色所创建的对象就是此角色的实例。
#include <iostream>
using namespace std;
class SingleCore
{
public:
virtual ~SingleCore(){};
virtual void Show() = 0;
};
class CoreA:public SingleCore
{
public:
void Show()
{
cout<< "CoreA"<<endl;
}
};
class CoreB:public SingleCore
{
public:
void Show()
{
cout <<"CoreB"<<endl;
}
};
//-------------------------------------------------------
class MultiCore
{
public:
virtual void Show() = 0;
virtual ~MultiCore(){};
};
class MultiCoreA:public MultiCore
{
public:
void Show()
{
cout<<"MultiCoreA"<<endl;
}
};
class MultiCoreB:public MultiCore
{
public:
void Show()
{
cout<<"MultiCoreB"<<endl;
}
};
//----------------------------------------------------------
class CoreFactory
{
public:
virtual SingleCore* CreateSingleCore() = 0;
virtual MultiCore* CreateMultiCore() = 0;
};
class FactoryA:public CoreFactory
{
public:
SingleCore* CreateSingleCore()
{
return new CoreA();
}
MultiCore* CreateMultiCore()
{
return new MultiCoreA();
}
};
class FactoryB:public CoreFactory
{
public:
SingleCore* CreateSingleCore()
{
return new CoreB();
}
MultiCore* CreateMultiCore()
{
return new MultiCoreB();
}
};
int main()
{
FactoryA factorya;
SingleCore *pcorea = factorya.CreateSingleCore();
pcorea->Show();
MultiCore *pmulticorea = factorya.CreateMultiCore();
pmulticorea->Show();
FactoryB factoryb;
SingleCore *pcoreb = factoryb.CreateSingleCore();
pcoreb->Show();
MultiCore *pmulticoreb = factoryb.CreateMultiCore();
pmulticoreb->Show();
delete pcorea;
delete pcoreb;
delete pmulticorea;
delete pmulticoreb;
}
后续我会学习其他设计模式。并贴出C++代码实现。
参考：http://blog.csdn.net/silangquan/article/details/20492293
